Tail shaft purpose built to fit between the gear box and differential.

 This tail shaft was made to handle about 500+ hp to ensure it will handle the high horse power the LS3 engine produces. Total length of the tail shaft is 400mm long. To get the correct length I needed the tail shaft to be, I measured from the face of the gear box flange to the diff flange face.

 Alloy universal yoke made to fit the three bolt gear box flange.

 Slip joint and the universal yoke that fits the M80 flange fitted to the differential.

 Tail shaft fitted in place.

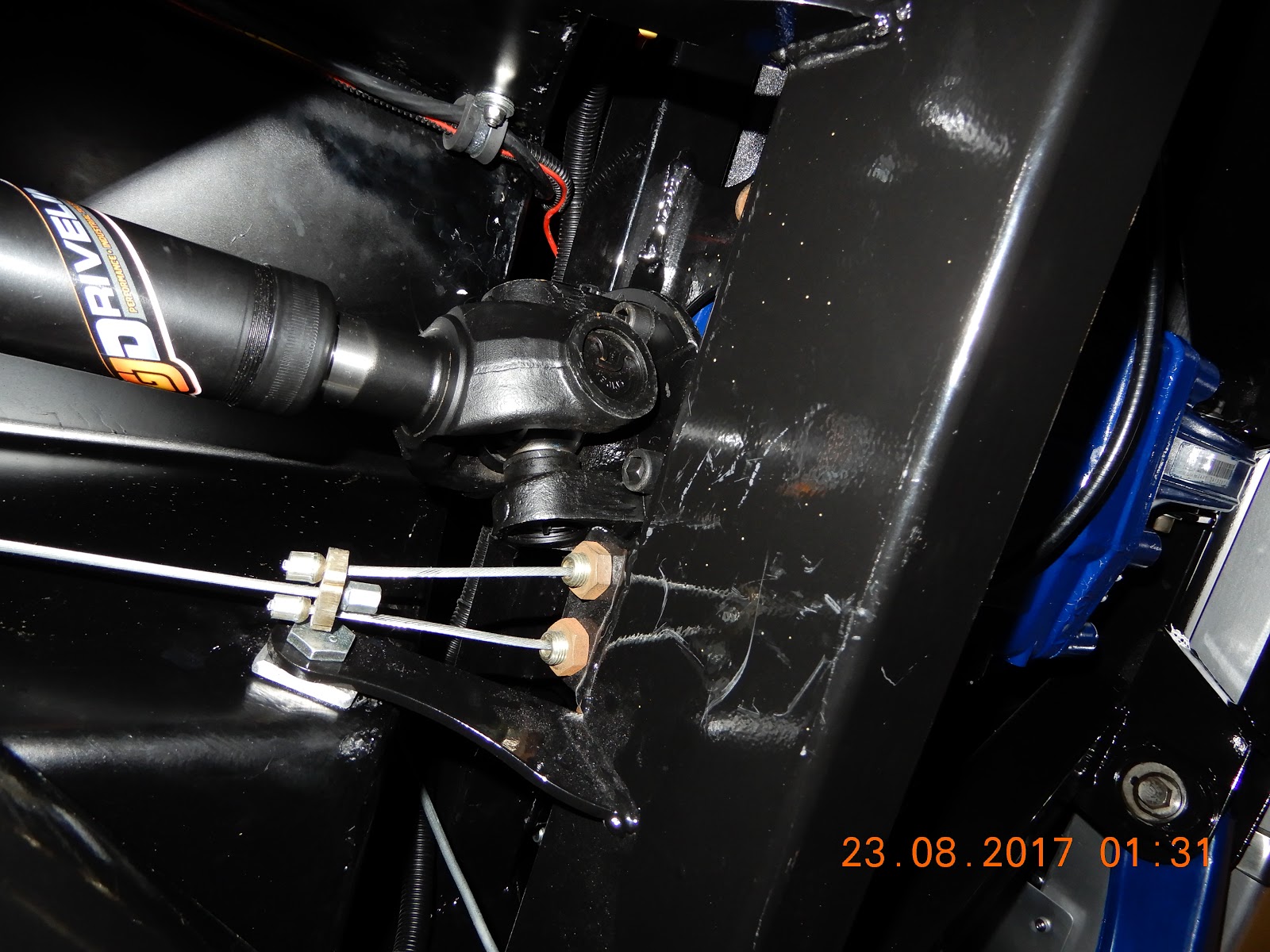

 Slip joint at the diff end of the tail shaft.
Also a good shot of the hand brake adjustment for the two rear cables.

All fitted in place ready to go.
